Product details of TP Link TL-WR840N V2 Wireless N Router 300Mbps – White
- 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
- Easy wireless security encryption at a push of WPS button
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
- WDS wireless bridge provides seamless bridging to expand your wireless network

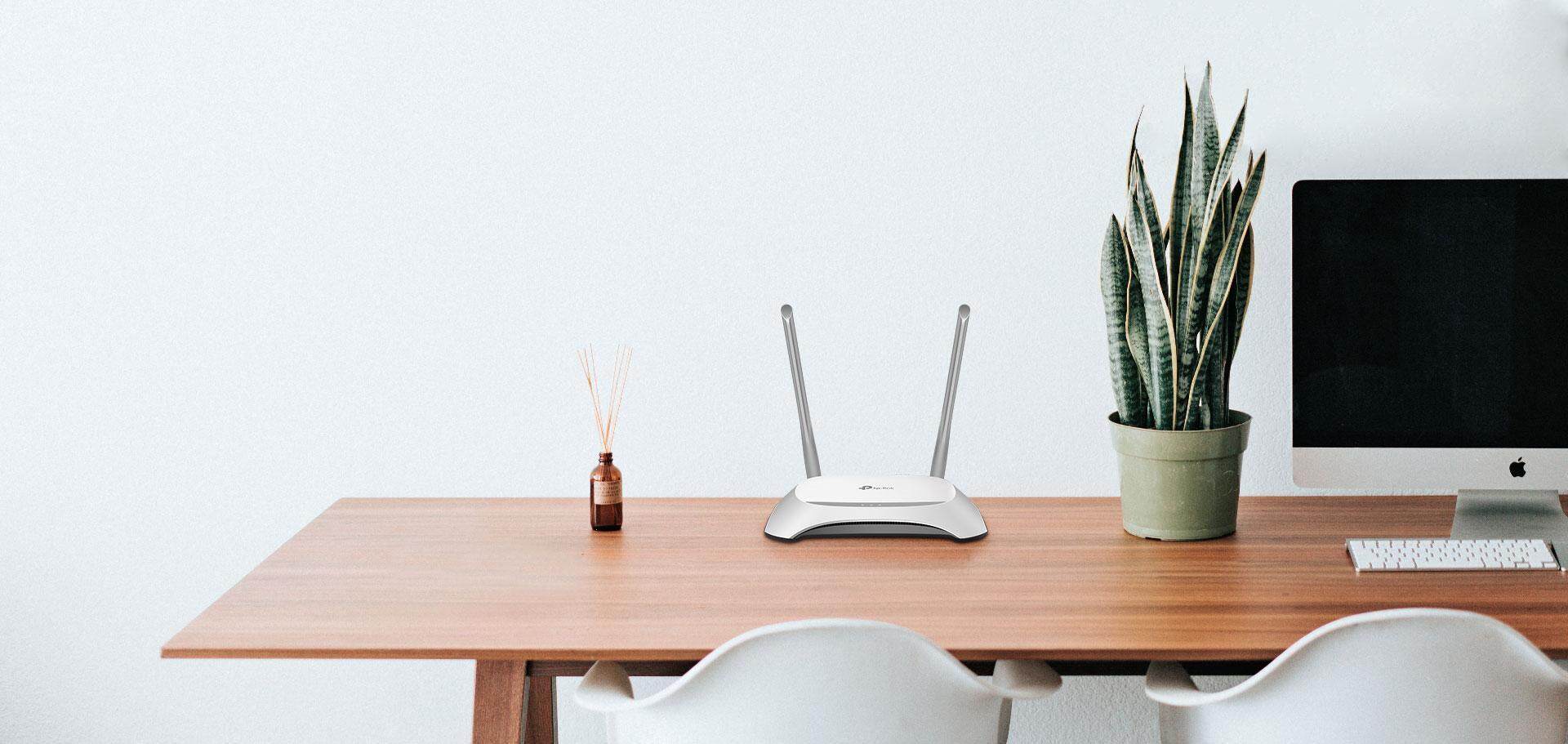

TL-WR840N V2 Wireless N Router 300Mbps – White

The 300Mbps Wireless N Router TL-WR840N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. The TL-WR840N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, Wi-Fi Protected Setup (WPS) button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.

300Mbps Wireless N Speed:
Fast Download Speed TP-LINK’s TL-WR840N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR840N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.CCA Technology – Stable Wireless Signals:
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.IP QoS:
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC.

Easy Setup:

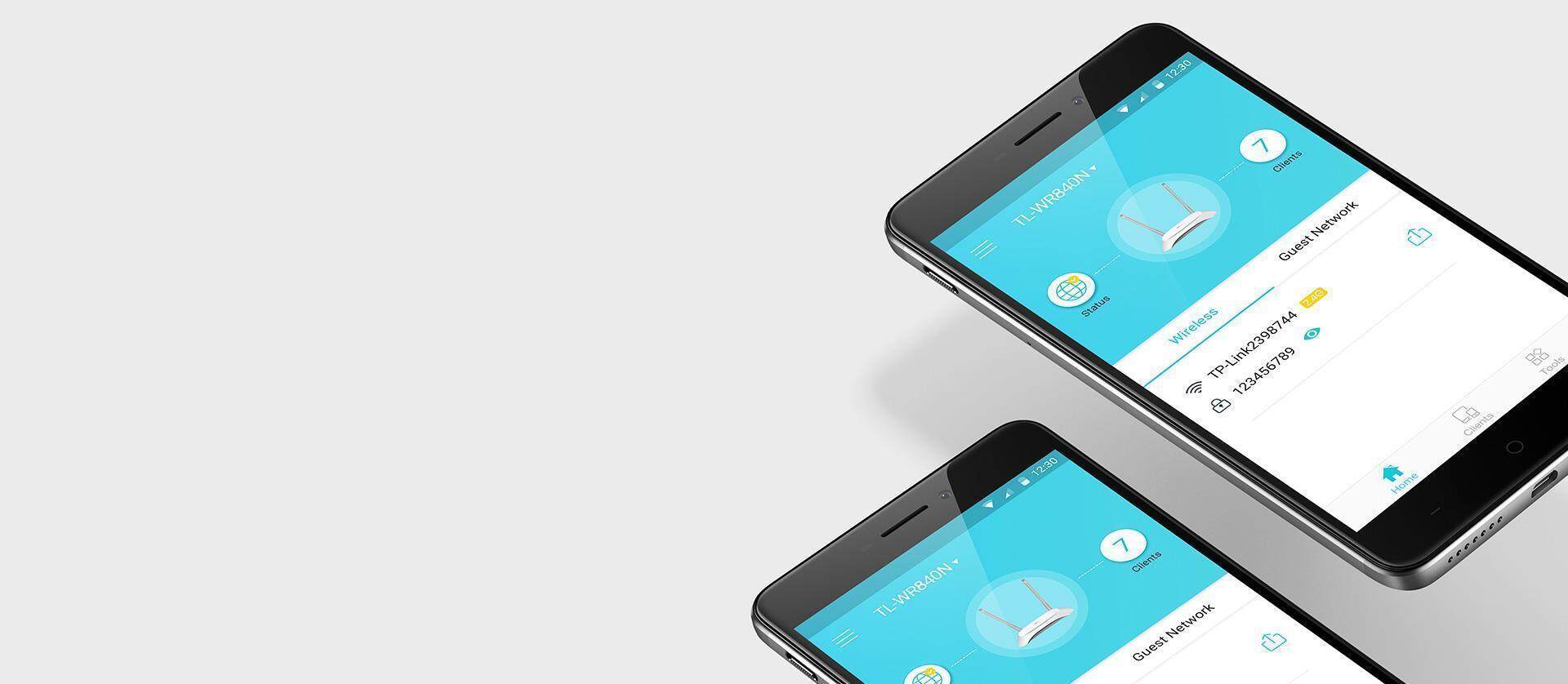

Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily. 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic workEasy wireless security encryption at a push of WPS buttonIP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PCWDS wireless bridge provides seamless bridging to expand your wireless network.
Specifications:
HARDWARE FEATURES |
Interface |
4 10/100Mbps LAN PORTS1 10/100Mbps WAN PORT |
Button |
WPS/RESET Button |
External Power Supply |
9VDC / 0.6A |
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Dimensions ( W x D x H ) |
7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm) |
Antenna |
2 Antennas |
WIRELESS FEATURES |
Frequency |
2.4-2.4835GHz |
Signal Rate |
11n: Up to 300Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic) |
Reception Sensitivity |
270M: -68dBm@10% PER130M: -68dBm@10% PER108M: -68dBm@10% PER54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER |
Transmit Power |
CE:<20dBmFCC:<30dBm |
Wireless Functions |
Enable/Disable Radio (Wireless), WDS Bridge, WMM, Wireless Statistics |
Wireless Security |
64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES |
Quality of Service |
WMM, Bandwidth Control |
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
Management |
Access ControlLocal ManagementRemote Management |
DHCP |
Server, Client, DHCP Client List,Address Reservation |
Port Forwarding |
Virtual Server,Port Triggering, UPnP, DMZ |
Dynamic DNS |
DynDns, Comexe, NO-IP |
VPN Pass-Through |
PPTP, L2TP, IPSec (ESP Head) |
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security |
DoS, SPI FirewallIP Address Filter/MAC Address Filter/Domain FilterIP and MAC Address Binding |
Protocols |
Support IPv4 and IPv6 |
Guest Network |
2.4GHz Guest Network x1 |
OTHERS |
Certification |
CE, RoHS |
Package Contents |
Wireless N Router TL-WR840NPower supply unitEthernet CableQuick Installation Guide |
System Requirements |
Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system |
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
Warranty Information:
1 Year International Manufacturer Warranty
